- Apollo Intelligent Addressable Fire Detection & Alarm System
Product Overview
The Apollo Intelligent Addressable Fire Detection & Alarm System is an advanced fire safety solution designed to provide rapid fire detection, accurate event identification, and reliable alarm notification. Utilizing intelligent addressable technology, each device on the system is assigned a unique address, enabling the Fire Alarm Control Panel (FACP) to precisely identify the location of alarms, faults, or maintenance requirements.
The system is suitable for a wide range of applications, including commercial buildings, industrial facilities, marine vessels, offshore platforms, hospitals, hotels, airports, shopping malls, data centers, educational institutions, and oil & gas installations.

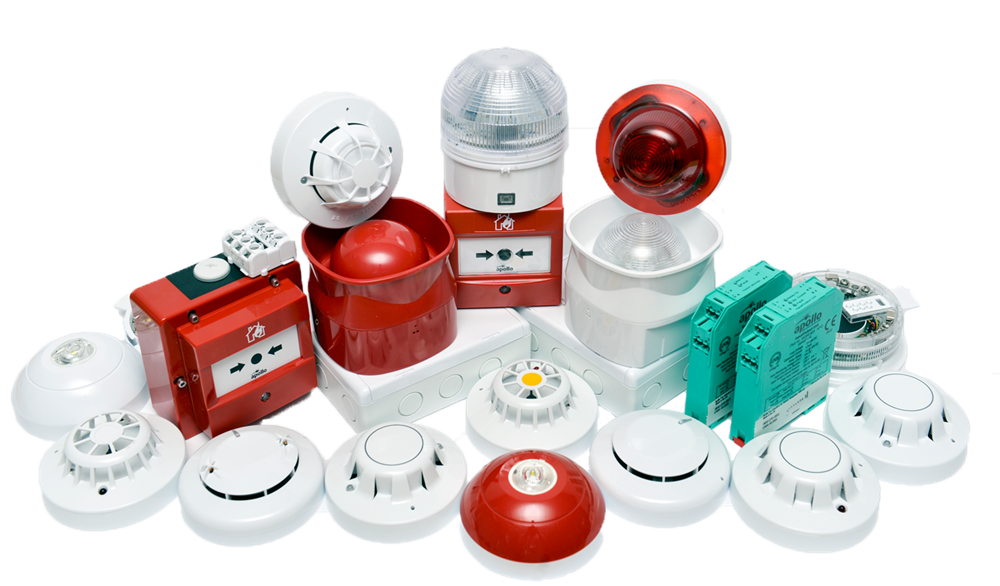

Main Components
1. Addressable Smoke Detector
Description
The addressable smoke detector continuously monitors airborne smoke particles using advanced optical sensing technology. It provides early fire detection while minimizing unwanted alarms through intelligent signal processing.
Key Features
Intelligent analogue addressable technology
High sensitivity optical smoke detection
Automatic sensitivity adjustment
Drift compensation for long-term reliability
LED alarm indication
Low power consumption
Continuous self-monitoring
Applications
Office Buildings
Hotels
Hospitals
Residential Apartments
Data Centers
Accommodation Areas
2. Addressable Heat Detector
Description
The addressable heat detector is designed to detect abnormal temperature increases where smoke detectors may not be suitable due to dust, steam, or airborne contaminants.
Available Types
Fixed Temperature Detector
Rate-of-Rise Detector
Combined Heat Detector
Key Features
Accurate temperature sensing
Intelligent addressable communication
High resistance to dust and humidity
Stable long-term performance
Applications
Kitchens
Boiler Rooms
Generator Rooms
Engine Rooms
Workshops
Warehouses
3. Addressable Manual Call Point (MCP)
Description
The Manual Call Point enables occupants to manually activate the fire alarm in the event of an emergency.
Key Features
Break glass or resettable operating element
LED status indication
Individual address identification
Fast alarm transmission
Optional protective cover
Benefits
Immediate emergency reporting
Simple operation
Reliable activation
4. Addressable Sounder
Description
The addressable sounder provides audible warning signals to alert building occupants during fire emergencies.
Key Features
High sound output
Multiple selectable tones
Low current consumption
Addressable operation
Reliable alarm notification
Typical Sound Level
Approximately 90–100 dB (depending on model).
5. Addressable Sounder Beacon
Description
The sounder beacon combines audible and visual alarm signals, making it ideal for noisy environments or areas where enhanced notification is required.
Key Features
Integrated sounder and LED beacon
High-intensity flashing light
Multiple flash patterns
Low power consumption
Intelligent addressable communication
Applications
Industrial Facilities
Marine Vessels
Offshore Platforms
Airports
Manufacturing Plants
6. Visual Alarm Device (Beacon)
Description
The visual alarm device provides a highly visible flashing light to warn occupants during emergency situations, particularly in noisy environments or for hearing-impaired individuals.
Key Features
Ultra-bright LED technology
Long operational life
Low energy consumption
Excellent visibility
7. Addressable Input / Output Module
Description
The Input/Output Module allows seamless integration between the fire alarm system and external equipment, enabling automatic control and monitoring functions.
Typical Interfaces
Fire Pump Control
Smoke Control Fans
Air Handling Unit (AHU) Shutdown
Lift Recall
Smoke Dampers
Deluge Systems
Gas Suppression Systems
Building Management System (BMS)
PLC Integration
Key Features
Supervised inputs
Relay outputs
Fault monitoring
Individual device addressing
8. Short Circuit Isolator
Description
The Short Circuit Isolator protects the communication loop by automatically isolating the faulty section in the event of a short circuit, ensuring the remaining devices continue operating normally.
Benefits
Automatic fault isolation
Increased system reliability
Simplified troubleshooting
Continuous operation of unaffected devices
9. Detector Base
Description
The detector base provides a secure mounting platform while establishing electrical and communication connections between the detector and the addressable loop.
Features
Easy installation
Secure electrical connection
Locking mechanism
Full compatibility with Apollo detectors
10. Addressable Interface Module
Description
The Addressable Interface Module connects conventional devices or third-party equipment to the addressable fire alarm system, enabling comprehensive monitoring and control.
Typical Connected Equipment
Flow Switches
Pressure Switches
Conventional Fire Detectors
Door Contacts
Valve Supervisory Switches
Emergency Shutdown Systems
System Operation
The Apollo Intelligent Addressable Fire Detection & Alarm System operates through the following sequence:
Field devices continuously monitor environmental conditions.
When smoke or abnormal heat is detected, the detector immediately transmits an alarm signal to the Fire Alarm Control Panel (FACP).
The control panel identifies the exact device address and displays the alarm location on the graphical interface.
Audible and visual alarm devices are activated automatically to notify occupants.
Output modules may trigger integrated safety systems, including: Fire Pumps
Smoke Extraction Fans
AHU Shutdown
Lift Recall
Gas Suppression Systems
Deluge Systems
Operators can acknowledge, silence, investigate, and reset the system directly from the control panel after the emergency has been resolved.
Key Advantages
Intelligent addressable technology
Precise alarm location identification
Fast and reliable fire detection
Reduced false alarms
Scalable system architecture
Easy installation and maintenance
Continuous device monitoring
Comprehensive event logging
Flexible system integration
High operational reliability
Suitable for commercial, industrial, marine, offshore, and infrastructure applications

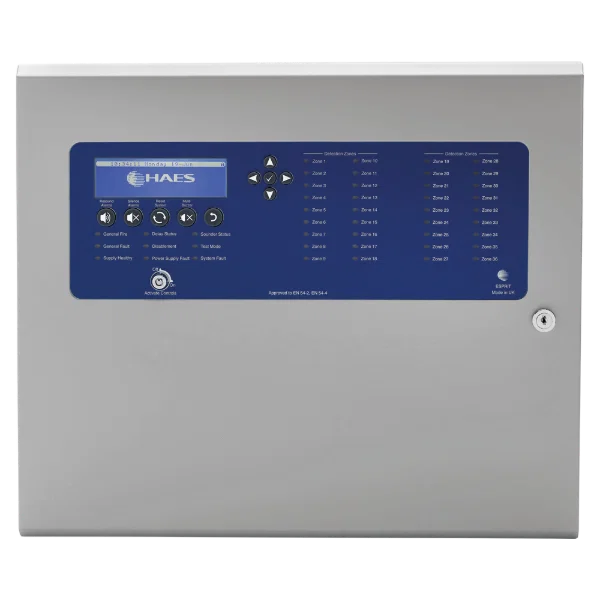

Esprit Apollo – 1-2 Loop – Apollo Protocol
The Esprit-ESA 1006 analogue addressable fire alarm control panel is designed to deliver a reliable, user-friendly, and economical solution for modern intelligent fire detection systems. Available in 1-loop or 2-loop configurations, the panel supports up to 240 addressable devices per loop when paired with Apollo Soteria devices, making it suitable for a wide range of small to medium-sized commercial and industrial applications.
Featuring a high-resolution graphical display and an intuitive menu interface, the Esprit-A simplifies system configuration, daily operation, and maintenance. The panel is fully compatible with the complete range of Apollo analogue addressable devices, including Soteria detectors and Apollo wireless solutions, providing excellent flexibility for new installations and system expansions.
For dependable operation, each panel is equipped with a 3.4 A internal switch-mode power supply, ensuring stable performance and efficient power management.
The Esprit-A control panel is designed and certified in accordance with EN54-2 and EN54-4 European standards, meeting international requirements for fire alarm control and power supply equipment.
Product Overview

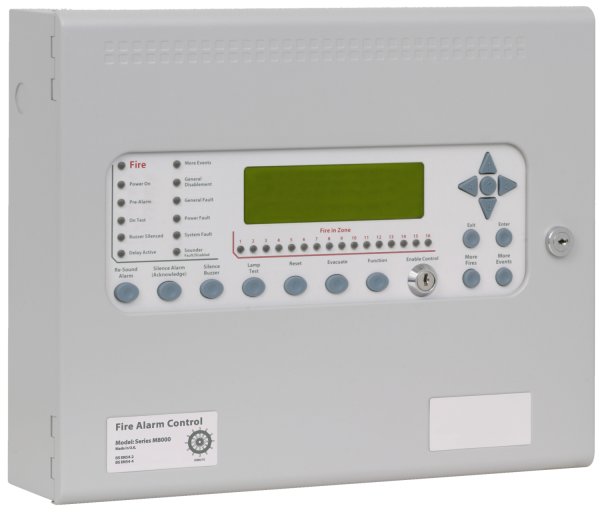

Syncro ASM The Apollo Intelligent Addressable Fire Detection & Alarm System is an advanced fire safety solution designed to provide rapid fire detection, accurate event identification, and reliable alarm notification. Utilizing intelligent addressable technology, each device on the system is assigned a unique address, enabling the Fire Alarm Control Panel (FACP) to precisely identify the location of alarms, faults, or maintenance requirements.
The system is suitable for a wide range of applications, including marine vessels, offshore platforms, hospitals, hotels, airports, shopping malls, data centers, educational institutions, and oil & gas installations.
